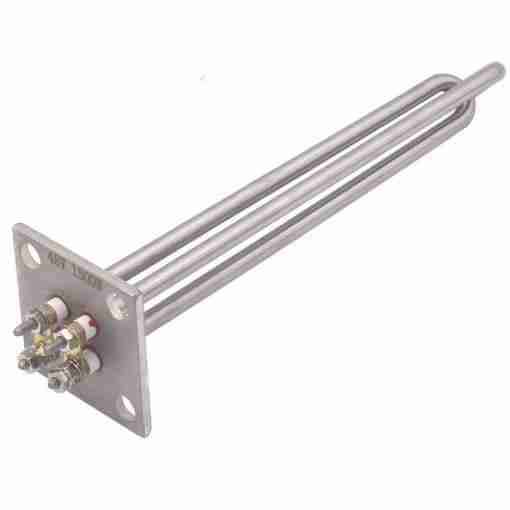

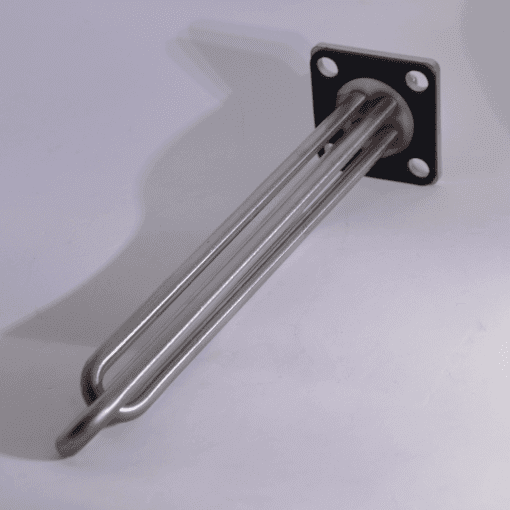

48v 1500w Hot Water Element
Can be used in heating up water for off grid applications on 25lt, 50lt and 80lt hot water systems. Perfect as a dump load for small wind turbines,

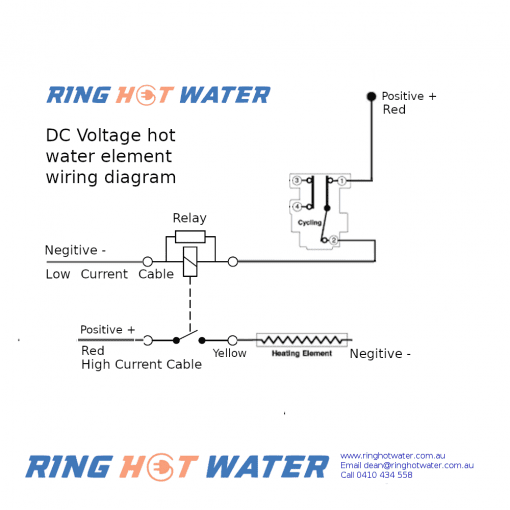

The 48v 1500w hot water element can be wired directly to solar panels with around 1500 watt output to heat the water. It can be connected directly to a charge controllers 48v output but it would be better to get a high current dc relay and power that by the controller and just use the relay as an inline switch between your battery ( bank ) and the element, high current cable and fuses should always be used when dealing with this sort of current, the standard water tank thermostat can be used to switch the element off automatically when the preset temperature is reached vie a relay.
* Convert a standard 25 liter up to 80 liter hot water service to an off grid water heater
* 1500 watt 48 volt DC element
* Stainless Steel element comes with insulated connection leads and rubber sealing gasket
* Can be used on Rheem , Dux , Aquamax and Rinnai hot water service
FEATURES & BENEFITS
• Base: Square Flat Flange 63.5mm*63.5mm
• Heater tube length: 240mm
• Material:Stainless steel
• Watt & volt: 1500W 48V
• Current: 31.25 amps
• Max temperature usage : 400 Degrees
