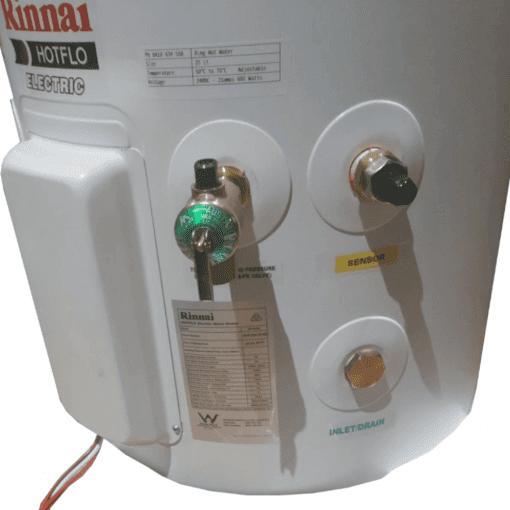

Rinnai Flowmaster Small capacity electric storage
Typically installed under benches or in cupboards, our small capacity electric units are designed to fit into the tightest spaces.
Features
* Vitreous Enamel lined steel tank for added durability
* Inbuilt anode protection extends the life of the tank
* Dual handed, allows increased flexibility during installation
* Perfect for under bench applications
* Pressure temperature relief valve included
* Suitable for internal use only
* Thermostatically controlled with safety temperature shut off for added peace of mind
* 3 wires for connection, load positive, load negative and switch input positive
Specifications
Electrical Supply ( Load ) |
48VDC 1500 Watt / 12VDC Control |
Tank Diameter |
415 |
Heating Elements Available (kW) |
1.5KW |
Weight Empty (kg) |
17 |
Overall Height |
452 |
Outlet Height |
297 |
Inlet Height |
153 |
Electrical Connection Height |
67 |
Relief Valve Setting (kPa) |
1000 |
Expansion Control Valve Setting |
850 |
With Expansion Control Valve |
680 |
Without Expansion Control Valve |
800 |
Water Connections |
RP 3/4 20mm |
Ingress Protection Rating (AS1939) |
IPX4 |
Rated Capacity (Litres) |
25 |
Please note this product is made to order and does not ship fro around a week after purchase
Electric Hot Water Repairs in Sunshine, Yarraville & Footscray Area Call 0410 434 558
What size flowmaster tank is needed: Click Here
