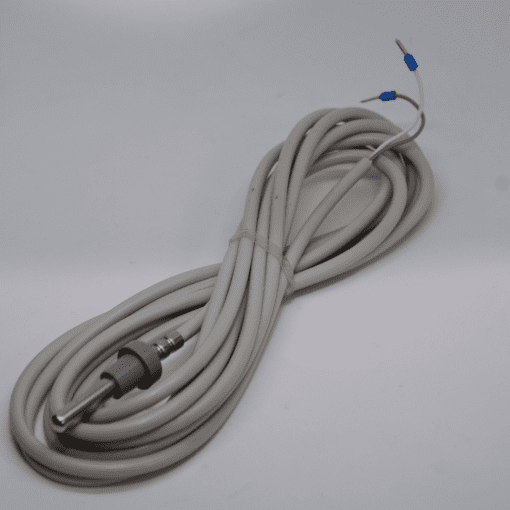

Solar Hot Water Sensor NTC10k
$25.00 Including GST
or 4 payments of $6.25 with Wizpay learn more
The solar hot water sensor NTC10k measures a change in resistance in varying temperatures on a solar hot water tank system
In stock
CompareSolar Hot Water Sensor NTC10k
The solar hot water sensor NTC10k measures a change in resistance in varying temperatures on a solar hot water system, the sensor is located on the bottom of the solar hot water tank and some solar hot water systems have another solar hot water sensor also located on the top of the tank for a more accurate reading of the temperature of the water in the tank.
Specifications
Suitable for pressurised solar water heating system.

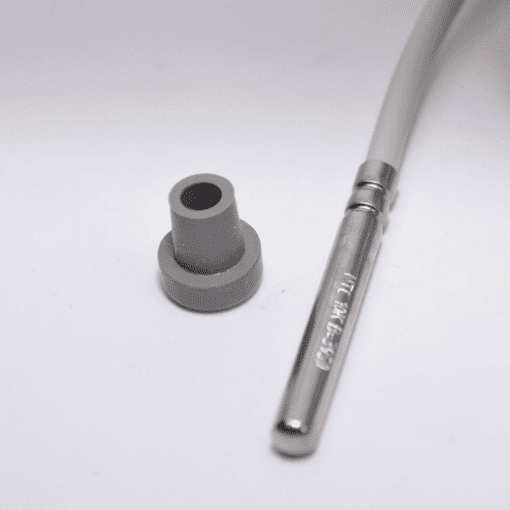

Sensor: NTC10K, 6 x 50mm
Thermometer: NTC 10K sensor Dia = 6mm
Cable: 3mt
Solar hot water sensor NTC10k resistance table below
|
NTC 10k resistance table |
||||||
|
-20°C = 96358Ω |
11°C = 19037Ω |
16°C = 15056Ω |
21°C = 11990Ω |
26°C = 9612Ω |
35°C = 6535Ω |
60°C = 2490Ω |
|
-10°C = 55046Ω |
12°C = 18202Ω |
17°C = 14414Ω |
22°C = 11493Ω |
27°C = 9224Ω |
40°C = 5330Ω |
70°C = 1753Ω |
|
0°C = 32554Ω |
13°C = 17368Ω |
18°C = 13772Ω |
23°C = 10995Ω |
28°C = 8835Ω |
45°C = 4372Ω |
80°C = 1256Ω |
|
5°C = 25339Ω |
14°C = 16533Ω |
19°C = 13130Ω |
24°C = 10498Ω |
29°C = 8447Ω |
50°C = 3605Ω |
90°C = 915Ω |
|
10°C = 19872Ω |
15°C = 15698Ω |
20°C = 12488Ω |
25°C = 10000Ω |
30°C = 8059Ω |
55°C = 2989Ω |
100°C = 677Ω |
