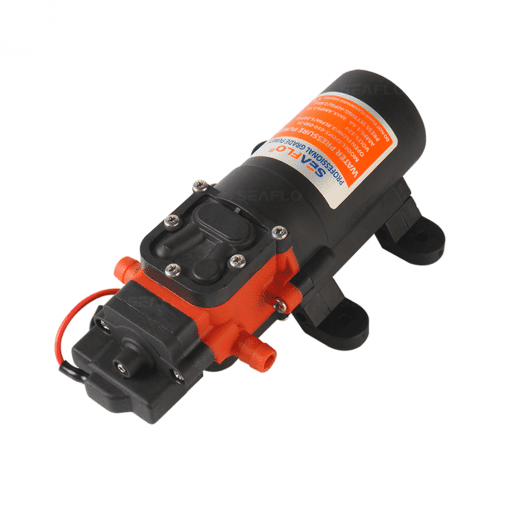

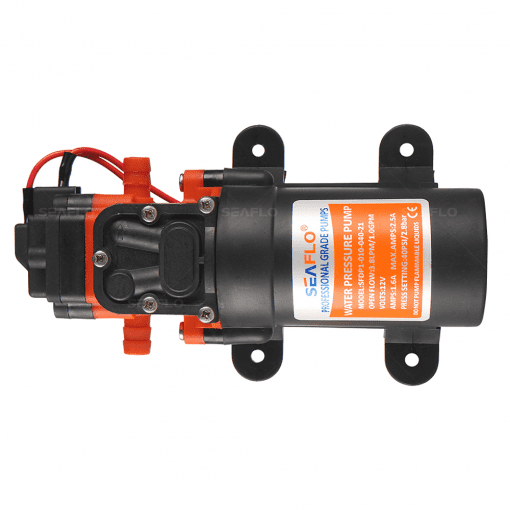

Seaflo Drinking Water Pump 12v

Name: Seaflo Drinking Water Pump 12v | drinking water pump | SFDP1-010-040-21
SKU: Seaflo 12v Drinking Water Pump 21 Series-1
Price: 55.00 AUD
Availability: OutOfStock

$55.00 Including GST

Seaflo Drinking Water Pump 12v provides flow rate up to 3.8 LP/M that has a wide range of applications including liquid transfer, spraying, circulation & filtration.

Out of stock

Compare

SKU: Seaflo 12v Drinking Water Pump 21 Series-1 Category: Caravan Hot Water Heaters

Seaflo Drinking Water Pump 12v

21 Series Diaphragm Pumps 12V 3.8LPM 40PSI

Don’t let the compact dimensions of the 21 series Seaflo drinking water pump 12v diminish the fact that it’s hardened and prepared for extreme conditions. The pump head and components utilize a completely integrated design, requiring minimal labor to replace. The 21-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 21-series of diaphragm pumps are self-priming and can be run dry without harm. It provides up to 1.2 gallons per minute.

PUMP
Type	2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type	Pressure switch
Max Recommended Temperature	60° C（140° F）
Priming Capabilities	4 feet (1.2 m) suction lift
Re-start Pressure	Shut-off Pressure 40 PSI : 30 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports	3/8″ (10mm) hose barb
Weight	1.3 lbs (0.6 kg)

MOTOR
Leads	18 AWG, 14″ (35cm) long with 2-Pin connector/Leads
Duty Cycle	Intermittent
Max.Amp Draw	4.5 A
Fuse	6.8 A

STANDARD PUMP CONFIGURATIONS

Model

Voltage

Open Flow

（GPM/LPM)

Control Type

Max Draw

Shut-off Pressure
(PSI/BAR)

Valves

Diaphragm

Ports

Wire Connections

SFDP1-045-040-41

12V

1 / 3.8

switch

40 / 2.8

Viton

Santoprene

3/8″ Barb

2-Pin/Leads

PERFORMANCE

1.0GPM

PRESSURE		FLOW		CURRENT
PSI	BAR	GPM	LPM	AMPS
0	0.00	0.87	3.29	1.30
5	0.34	0.84	3.18	1.50
10	0.68	0.81	3.07	1.50
15	1.03	0.78	2.95	1.60
20	1.36	0.76	2.88	1.70
25	1.72	0.73	2.76	1.90
30	2.04	0.70	2.65	2.00
35	2.41	0.66	2.50	2.10
40	2.72	0.62	2.34	2.30
