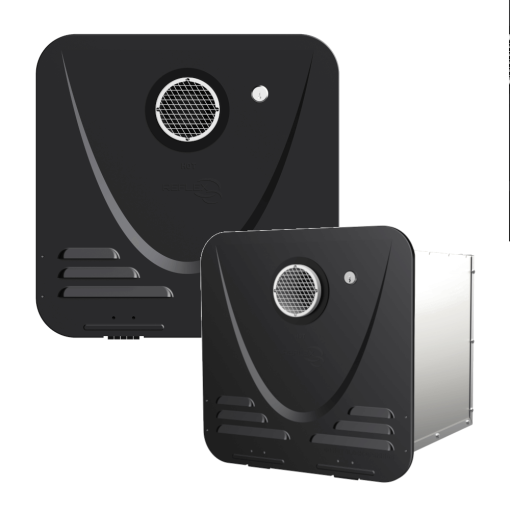

RV Hot Water Heater

RV water heaters feature advanced state of art heating elements and insulation, heating water quickly regardless of conditions. With double the power output of competitors at 80,000 BTU, this heater ensures a constant water supply, even in extremely cold conditions. The compact design saves space, while high flow rate capacity allows for simultaneous showering and dishwashing, making reflex the top choice for RVs of all sizes. Reflex RV water heaters deliver unparalleled performance, convenience, and peace of mind for your journey ahead.

Whether visiting the Outback, adventuring on one of Australia’s many waterways, or travelling for business or pleasure, this unique product will provide bountiful hot water for you and your friends to shower in comfort.

Specifications:

* Model: RVIUWH11B, RVIUWH11W

* Installation: Suitable for installation in RVs

* Gas Type: Universal LPG (ULPG)

* Water outlet connection: 15mm Male thread

* Water inlet connection: 15mm Male thread

* Gas inlet connection: SAE 45 5/8-18UNF (3/8’’ Copper Pipe)

* Power supply 12VDC. 10 amp

* Capacity (temperature rise 25c) 11L/min

* Min/Max Gas supply pressure 2.75 – 7.0 kPa

* Nominal Heat Input (Btu/hr) 80,000

* Minimum heat input (Btu/hr) 20,000

* Main injector 1.2mm

* Nominal Mainfold pressure 1.55 kPa

* Min/Max Gas consumption 23 – 84.3 MJ/hr

* Min/Max temperature setting 43 – 50C

* Factory Preset Temp 50C

* Efficiency 84%

* Min/Max Water supply pressure 2-kPa – 1000 kPa

* IP Rating IPX4

* Cut out Dimensions 330 x 330 x 450 mm

Features:

* Gas Type – Universal LPG (ULPG)

* Continuous flow – The water heaters use gas a fuel, and can supply continuous flow of hot water for shower, washing, kitchen etc.

* Easy operation – The operations are intelligent and automatically controlled with the advanced microcomputer chips controlling proportional valve, infinite speed, exhaust fan speed, and heavy load combustion device.

* Rain proof installation – The water heater itself is with special rainproof structures.

* Automatic Error detection – When the hot water is in operation, the control board will monitor the working state of control circuits, safety units, fans, proportional valve etc. If there is a problem, the working heater is stop working, and an error code will be displayed on the wired controller.

* Microcomputer smart control – The microcomputer in the water heater will work out the perfect working parameters to ensure constant hot water temperature delivery based on input data such as inlet water temperature, preset temperature etc. It could also ensure the water heater works at high energy efficiency.

* 02 Year Warranty
