Caravan Electric Hot Water System
Duoetto 12v 240v Water Heater
Duoetto 12v 240v twin tap water heater full installation kit
10L small capacity 12v / 240vac electric units are designed to fit into the tightest spaces.
The Australian designed and approved Duoetto hot water heater MK2 offers selectable temperatures between 30-75ºC on 240v and 30-70°C on 12v so that you can shower, wash, cook, clean and enjoy abundant hot water.
Whether visiting the Outback, adventuring on one of Australia’s many waterways, or travelling for business or pleasure, this unique product will provide sufficient hot water for you and another to shower in comfort. Fantastic for caravan’s, boats, food trucks, horse floats and motor home’s and RV’s
Specifications:
* MK2 Latest Model
* Compact size: W 409mm x H 262mm x D 267mm
* Rated Capacity: 10L
* Rated Voltage: 12v (25A 300W) / 240v (4.6A, 1000W)
* Warranty: 12 months
Features:
* Variable thermostat 30-75°C on 240v
* Variable thermostat 30-70°C on 12v
* Durable outer case with service and inspection points
* SPCC steel & enamel tank
* Single weld line
* Polyurethane insulation
* Automatic voltage detection switching from 12v to 240v and vice versa
* Over temperature and run dry protection
* Combination pressure relief valve and non return valve
*Incoloy 840 heating element
Electrical Supply |
12v / 240vac |
Width |
409 |
Heating Element |
300w / 1000w |
Weight Empty (kg) |
8.2 |
Overall Height |
267 |
Rated Capacity (Litres) |
10 |
All the common parts needed for a plumber to install a caravan hot water heater
Note: No tap or tank included

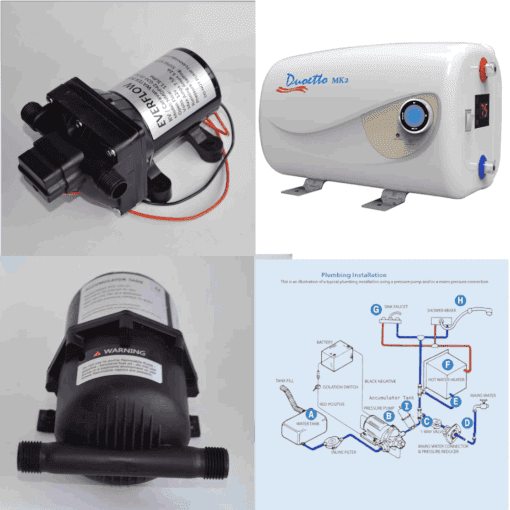

Parts Included:
* Duoetto 12v 240v x 1
* Everflow 12v Water Pump x 1
* Everflow Everflow accumulator tank x 1
* 12mm X 1/2″ BSP Male Adapter x 1
* 12mm X 1/2″ BSP Female Adapter x 13
* 12mm Stem Elbow x 6
* Mains 350kpa pressure limiting non return valve
* 12mm Equal Tee Connector x 5
* Hot Water Tempering Valve x 1
* 1/2″ Brass Nipple x 4 ( Connects to braided hose fittings )
* Red 12mm Caravan Water Pipe x 7mt
* Black 12mm Caravan Water Pipe x 7mt
Please lets us know if you prefer Y dividers instead of equal tee connectors
Specifications:
* MK2 Duoetto Digital 12v 240v
* Compact size: W 409mm x H 262mm x D 267mm
* Rated Capacity: 10L
* Rated Voltage: 240v (4.6A, 1000W)
* Warranty: 12 months
Features:
* Variable thermostat 30-75°C on 240v
* Durable outer case with service and inspection points
* SPCC steel & enamel tank Single weld line
* Polyurethane insulation Over temperature and run dry protection
* Combination pressure relief valve and non return valve
Electrical Supply |
240 vac |
Width |
430 |
Heating Element |
1000 watt |
Weight Empty (kg) |
8.2 |
Overall Height |
230 |
Rated Capacity (Litres) |
10 |
Electric Food Truck Hot Water Repairs in Sunshine, Yarraville & Footscray Area Call 0410 434 558
Extra black tube https://ringhotwater.com.au/product/black-12mm-caravan-water-pipe/
Extra red tube https://ringhotwater.com.au/product/red-12mm-caravan-water-pipe/
Extra Fittings https://ringhotwater.com.au/product-category/water-filter-parts/12mm-push-fit-pipe-fittings/
