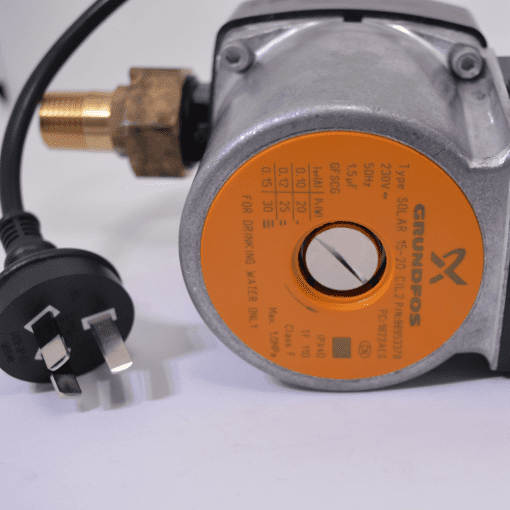

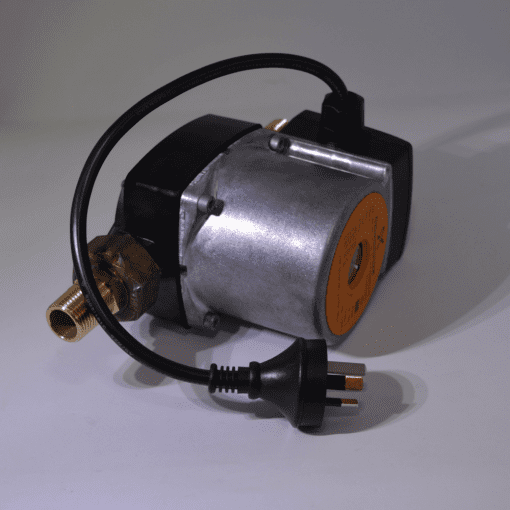

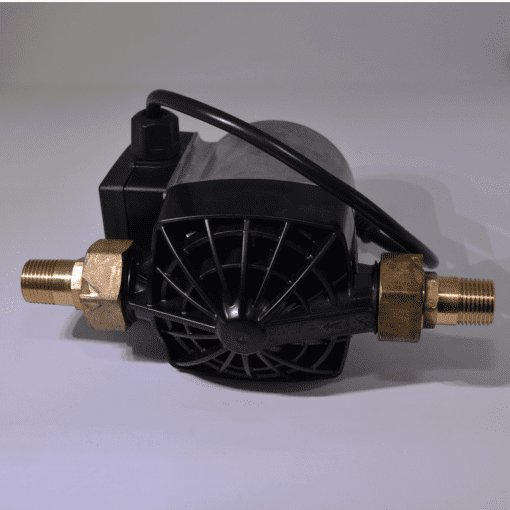

Grundfos Solar Water Circulation Pump

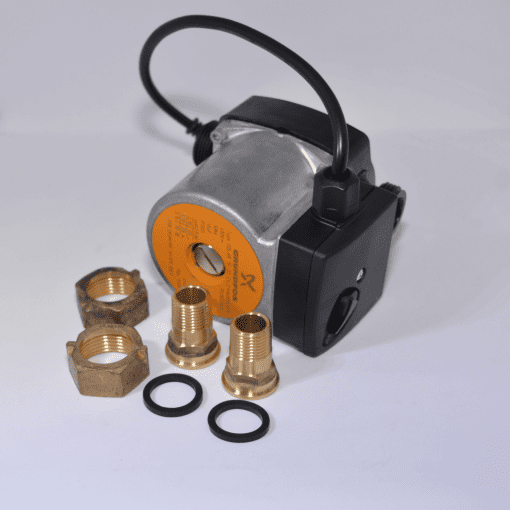

Grundfos solar water circulation pump 15-20 CIL 2 240V including unions fittings and power lead fitted for easy change over
SKU:Grundfos Solar Water Circulation Pump Category:
  • Description
  • Additional information
  • Reviews (0)


Grundfos Solar Water Circulation Pump

The 15-20 CIL 2 Grundfos Solar Water Circulation Pump (including unions) 240V fitted with power lead for easy installation

Grundfos housing (Composite In- Line Version 2) is available in composite material, made by injection moulding, using collapsible core technology.

The Grundfos Solar Water Circulation Pump is very efficient with low power usage characteristics and can be used with open or closed loop solar circuits. Solar transfer fluids can be water or glycol.

Comes complete with a three speed asynchronous circulator, with low energy usage; it is certified “B-class technology”.

Grundfos Solar 15-20 with DZR body Specification

  • Minimum / Maximum temperatures: – 25 to +100 Deg C
  • Maximum “peak” temperature 140 Deg C
  • Pressure class PN10
  • Protection class X 4D
  • Insulation class H
  • Resistant to condense water at a low temperature and a cold start protected.
  • Suitable for use in open loop and closed loop solar hot water systems

The Grundfos Solar 15-20 range is robust, endurable and temperature resistant. It is suitable for water/glycol mixtures and coolants without mineral oils. The pump with composite housing is specific to be used on solar applications and the pump can be used in both open and closed systems.

What does the Solar Pump do?

The solar hot water circulation pump operates intermittently throughout the day to maintain maximum hot water output and minimise energy consumption, it is controlled by the solar controller during an average year the pump costs approximately $10-$15 per year to run.


Additional information

Weight 1.4 kg
