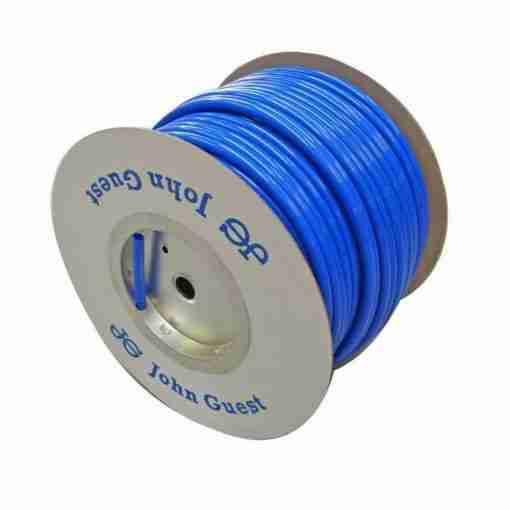

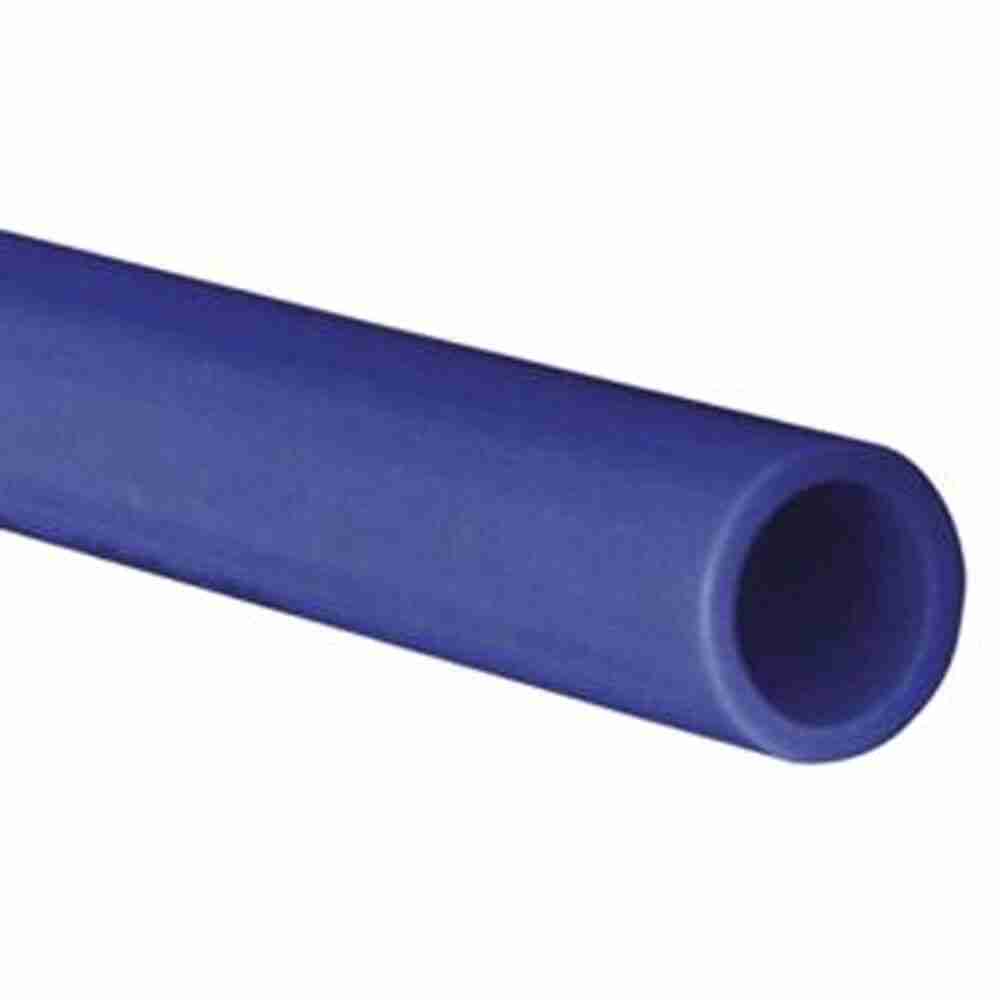

Blue 12mm john guest tube
Blue 12mm john guest tube is the world’s leading manufacturer of high quality push-in fittings, tube and plastic plumbing systems to a wide variety of industries, John Guest fittings are easy to use, simply push the tubing all the way in then pull on the pipe to lock for a high water pressure sealed connection
* Note Sold by the meter
- Blue 12mm john guest tube
- Sold by the meter
- Used with 12mm water fittings
- Push-fit technology
- Quick disconnection without the need for tools
- High chemical resistance
- Food Quality and suitable for potable liquids and pure water applications
- Not suitable for compressed air and vacuum applicationsFood Quality
All tube is produced in Food and Drug Administration (FDA) compliant materials and are therefore recommended for food quality applications
HOW SUPER SPEEDFIT WORKS
To make a connection, the pipe is simply pushed in by hand; the unique patented John Guest collet locking system then holds the tube firmly in place without deforming it or restricting flow.
Materials of construction
Super Speedfit fittings are made up of three components:
Bodies are produced in an acetal copolymer or polypropylene.
‘O’ rings are Nitrile rubber or EPDM.
Collets are produced in acetal copolymer or polypropylene with stainless steel teeth.
TO DISCONNECT Push in collet and remove tube
Super Speedfit fittings are suitable for the following pressures and temperatures.
5/32″ – 5/16″
|Potable Liquids and Air
Super Speedfit fittings are offered for tubes with outside diameters to the following tolerances.
5/32 – 3/16
1/4 – 1/2
+0.001 / -0.003
+0.001 / -0.004
|4mm – 5mm
6mm – 22mm
+0.05 / -0.07
+0.05 / -0.10
Maximum Torque Values for Plastic Threads BSP, BSPT & NPT.
Plastic threads are not generally as strong as brass threads. Customers and end users should be aware of this when choosing products for their applications. Over-tightening of plastic threads will cause undue stress and eventual cracking and leakage. The maximum torque figures for BSP and BSPT threads used in John Guest fittings in mating threads conforming to the relevant BS or International thread standards are shown below.
1/8 – 1/4
3/8 – 1/2
