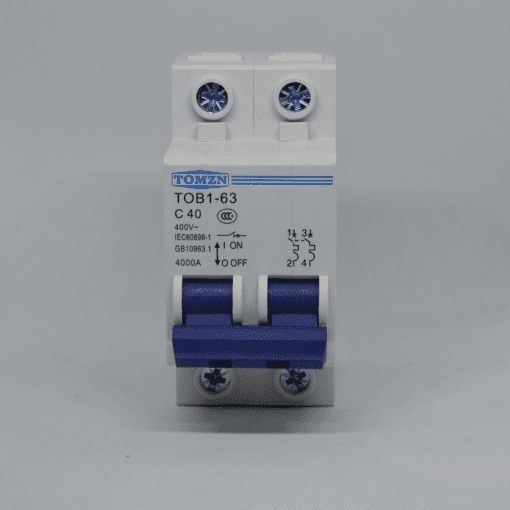

2 Pole 40A DCV Din rail Circuit Breaker
2 Pole 40A DC Circuit Breaker for off-grid use, caravan, camper trailer or any other project, these are most common type and easy to install are suitable for any DC circuit up to 400 volts, such as DC hot water heating.
These mount on any standard 35mm DIN rail and can be used in standard electrical switchboard enclosures for a neat and easy installation
Specifications
Ciruit Breaker model: TOB1-63
Rated isolating voltage: (Ui) V400
Rated operating voltage: (Ue) V400
Thermal continuous current: (Ith) A40
Rated short circuit breaking capacity: 4kA
Operating times: 3000
Mount: Din Rail
ISO 9001
Note: do not exceed maximum current rating of the cable by 80% is a good guide
