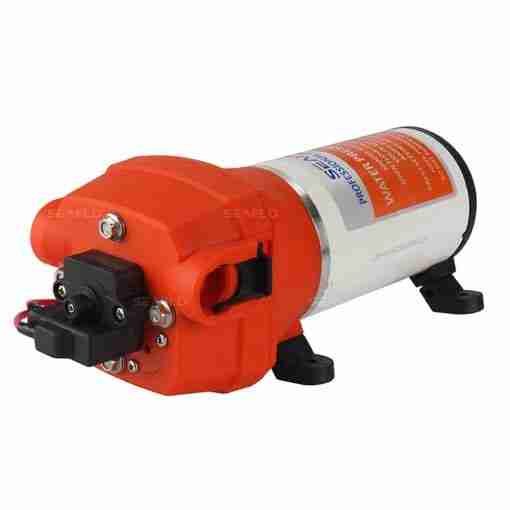

Seaflo 12v Water Pump
41 Series Diaphragm Pumps 12V 17LPM 40PSI
The seaflo 41 Series water pump provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. The 41 series pump is designed to run on water systems with no accumulator tank necessary, and up to five outlets. It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 17 liters per minute, suitable in a system of up to five fixtures.

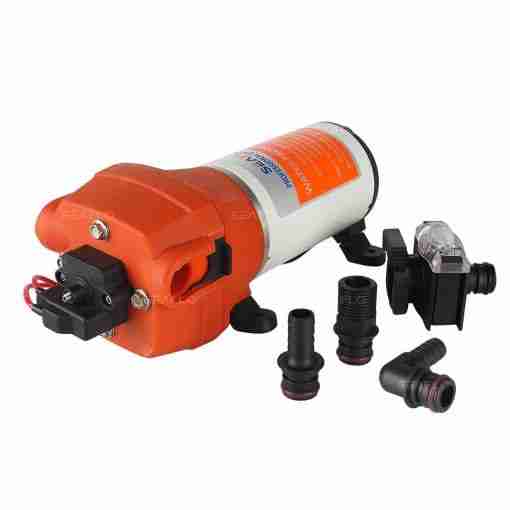

The 41 series water pump is self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed. They’re easy to install service and winterize with quick snap-in port fittings
|
|
STANDARD PUMP CONFIGURATIONS
Model | Voltage | Open Flow
(GPM/LPM) |
Control Type | Max Draw | Shut-off Pressure (PSI/BAR) |
Valves | Diaphragm | Ports | Wire Connections |
SFDP1-045-040-41 | 12V | 4.5 / 17.0 | switch & By pass | 15.0 | 40 / 2.8 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
HEAT RISE DIMENSIONS
Key Specifications:
* Model: SFDP1-045-040-41
* Size: L 255mm x H 98.5mm x W 102mm
* Rated Capacity: up to 17lpm
* Rated Voltage: 12V /15A
* Shut Off Pressure; 40 psi
* Replacement parts available
* Warranty: 3 years
