Jayco pressure limiting valve

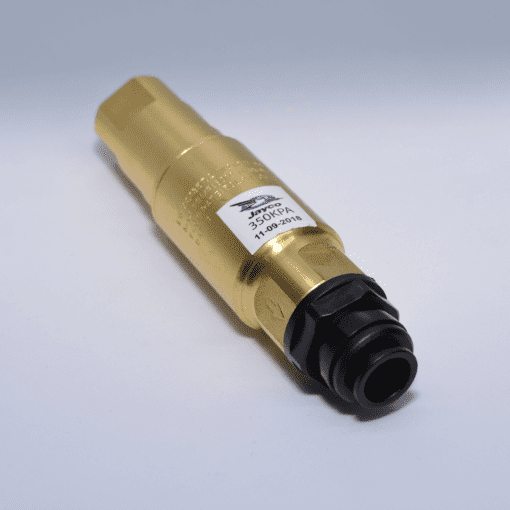

Austworld RV 350kpa Jayco Pressure Limiting Valve

The caravan Jayco pressure limiting valve PLV combined non-return limits water pressure within a water circuit when the circuit is closed. Comes complete with a combination of 12mm output push on end and male threads (1/2″BSP) input.

 Whilst the Jayco pressure limiting valve is fitted as an OEM pressure limiting valve for many Australian manufacturers of RV’s and Caravans, it suitable for any RV or Caravan that is fitted with a pressure limiting valve.

Product Features:

• Model: PLVCV15-350+12mm Push Fit
•  Input: 1/2″ BSP female
• Output: 12mm push fit
• 350kPa pressure limiting valve
• Prevents damage to plumbing and appliances from high pressure
• DR brass body
• Integral non-return valve
• Nominal size DN15 (1/2”)
