Hot Water Mixing Valve

Hot Water Mixing Valve

The Hot Water Mixing Valve delivers consistent tempered water by combining hot and cold water into a steady output temperature. It ensures reliable control across a hot water system and supports safe water use in a wide range of setups.

This valve suits caravans particularly well, where maintaining stable hot water temperatures is essential for comfort and safety. By tempering hot water effectively, it prevents sudden temperature fluctuations. As a result, you gain both convenience and protection during daily use.

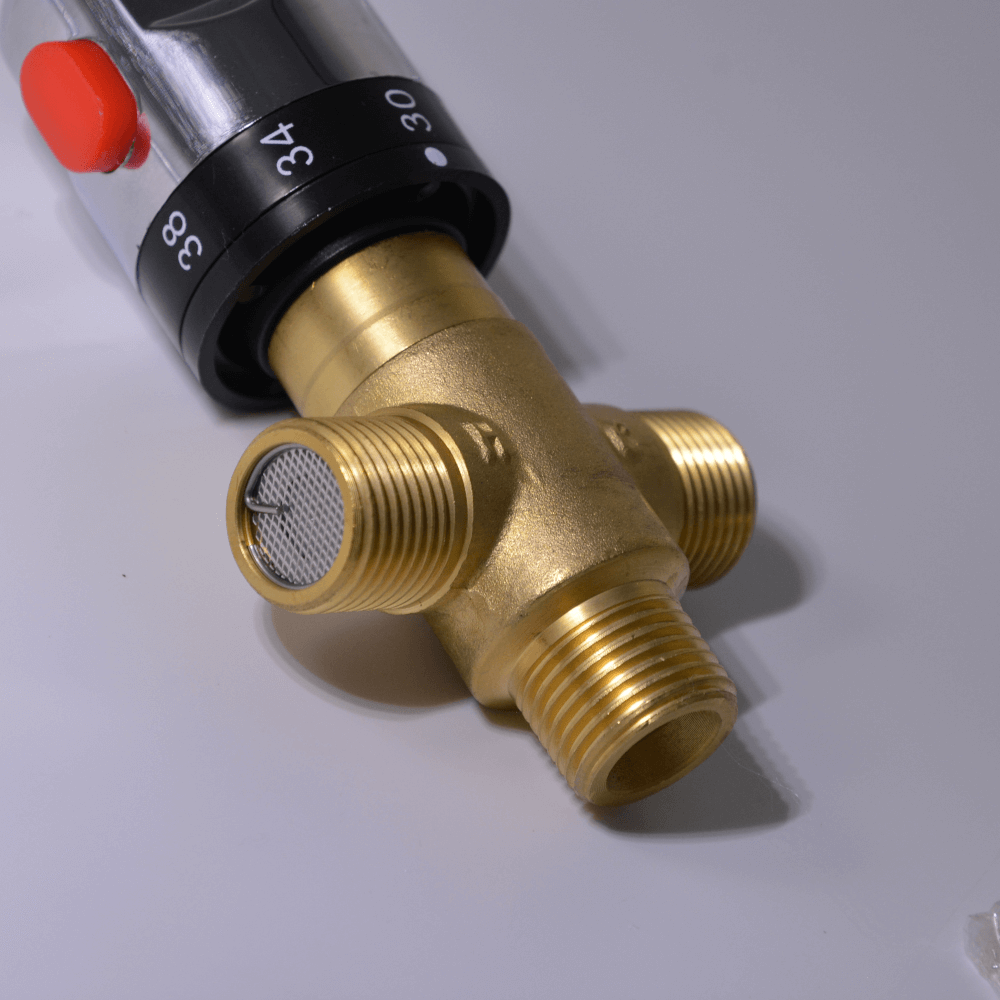

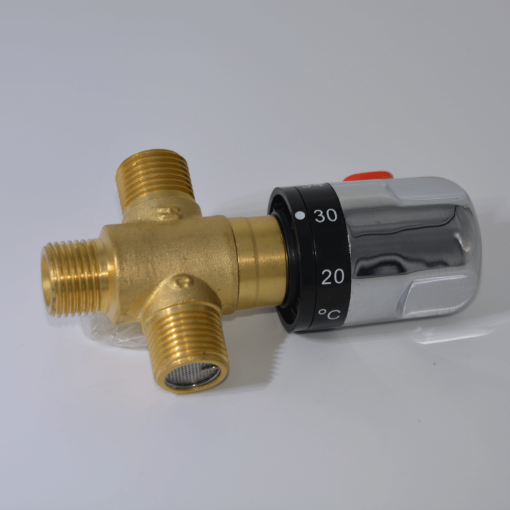

Built with a cast brass body, the valve provides durability under frequent use and high pressure. Additionally, integral mesh strainers protect the system from debris, helping extend service life. The design also incorporates innovative polymers, which resist calcium build-up and improve long-term performance in mineral-rich water conditions.

The valve supports a temperature range from 0°C to 50°C, ensuring versatility across different hot water setups. Cold water supply runs between 5°C and 29°C, while hot water supply functions effectively from 55°C to 80°C. Therefore, the valve maintains an adjustable mixing range of 35°C to 45°C, with an accuracy of ±2°.

In terms of pressure, the valve operates reliably between 0.03 and 1.0Mpa, with an optimal recommendation of 0.1 to 0.5Mpa. Furthermore, it delivers a strong flow rate of 11.67L per minute at 1 bar of pressure, ensuring consistent supply for daily use.

Altogether, the Hot Water Mixing Valve offers durability, safety, and precision. With its strong construction, dependable flow rate, and accurate temperature control, it stands as a practical solution for both caravans and domestic hot water systems.

 Specifications

•  Cold Water Supply Temperature: 5˚C – 29˚C
• Hot Water Supply Temperature: 55˚C – 80˚C
•  Mixing Water:35-45°c, Adjustment Accuracy: ±2°
• Working Pressure: 0.03-1.0Mpa, Recommend Pressure:0.1-0.5Mpa
• Flow Rate: 11.67L/min in 1Bar Water Pressure

(All plumbing items must be installed by a licenced plumber)
