Everflow 12v Water Pump

Name: Everflow 12v water pump | RV water pump | NMDP42-G30-55-12
SKU: Everflow 12v Water Pump
Price: 130.00 AUD
Availability: InStock

$130.00 Including GST

or 4 payments of $32.50 with Wizpay

Everflow 12v water pump provides high volume flow rate up to 11.3 LP/M suitable for boats, caravans, food trucks of up to 3 outlets.

In stock

Compare

SKU: Everflow 12v Water Pump Category: Caravan Hot Water Heaters

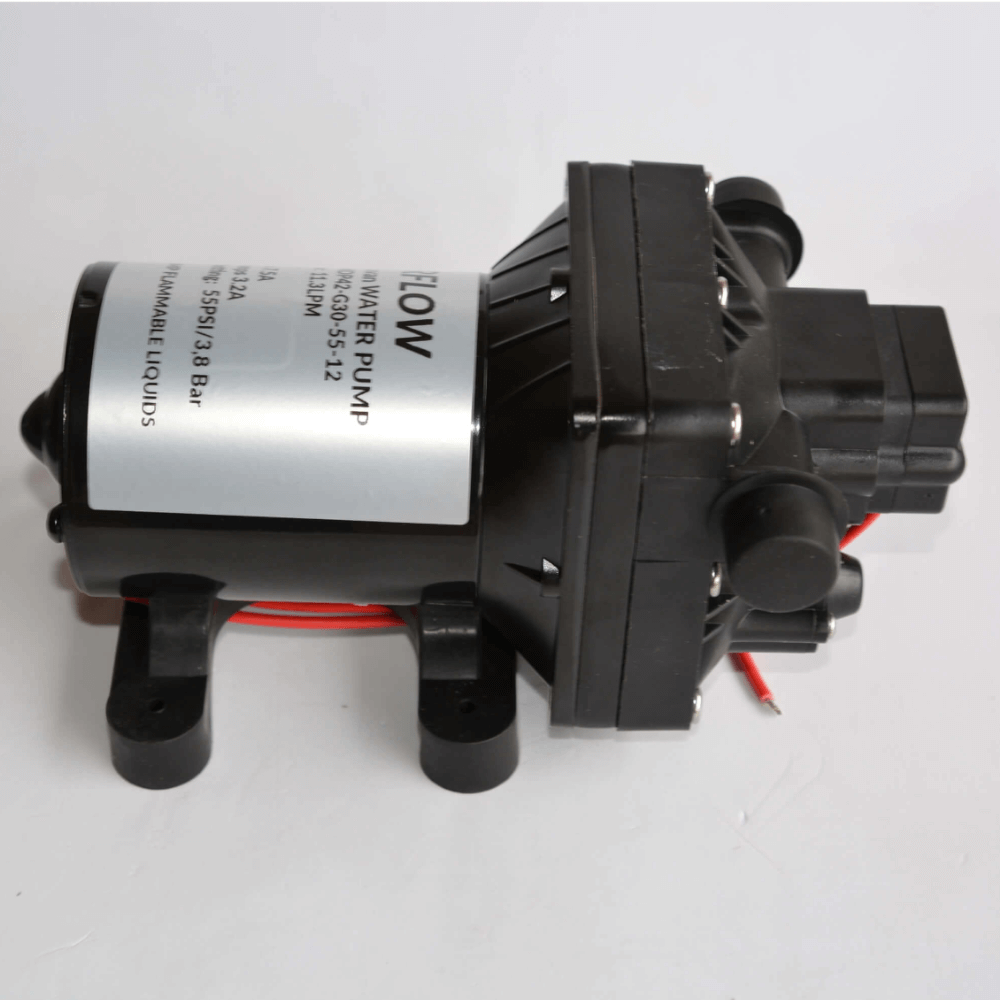

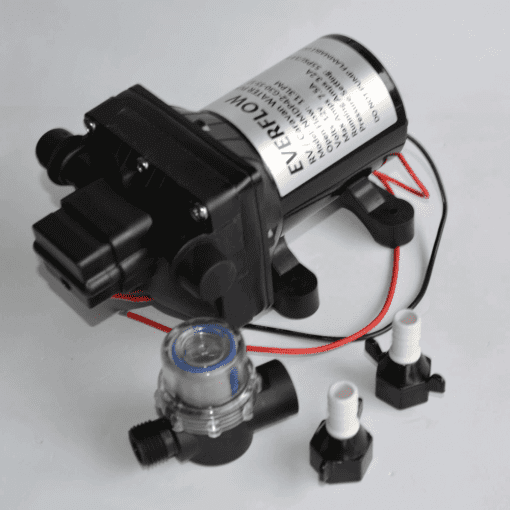

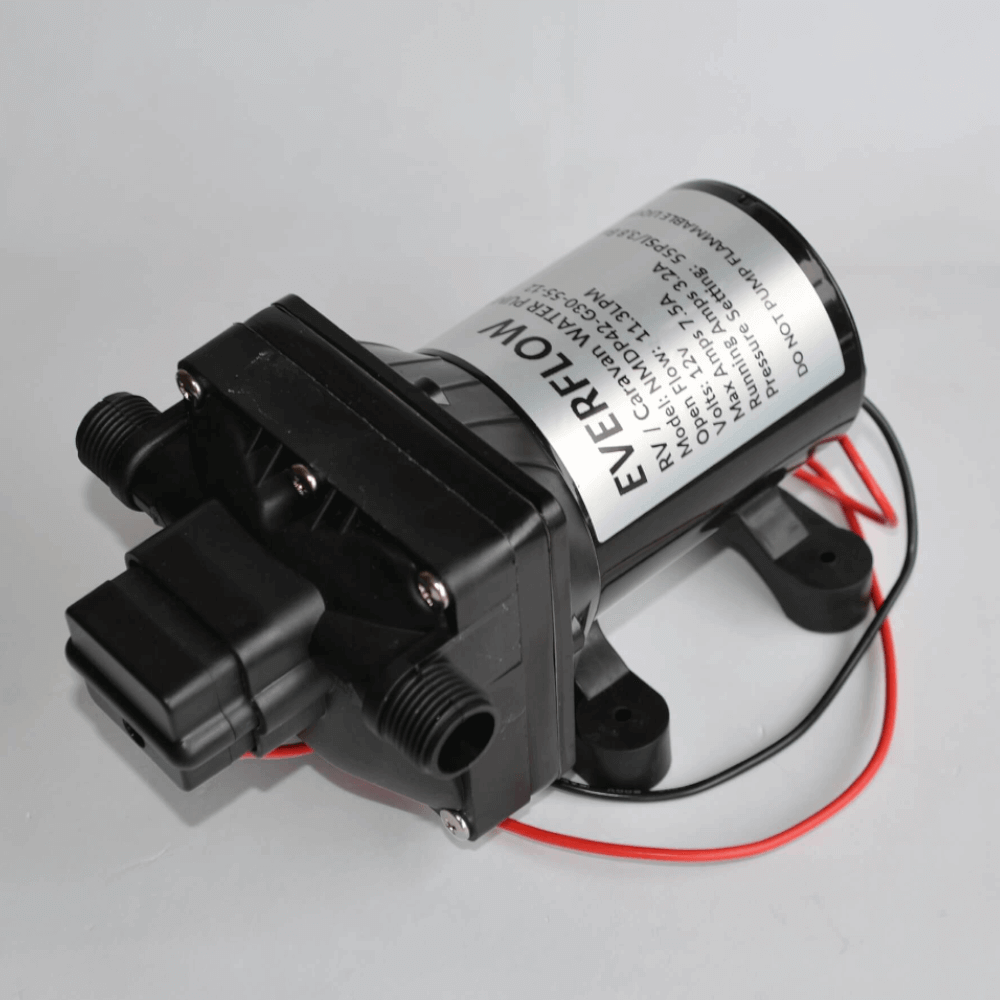

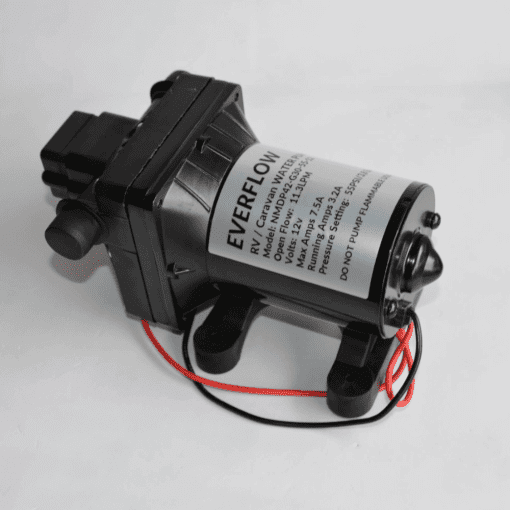

Everflow 12v Water Pump

42 Series Diaphragm Pump 12V 11.3LPM 55PSI

The Everflow 12v water pump provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. The Everflow water pump is designed to run on water systems with no accumulator tank necessary. It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 11.3 liters per minute.

The 42 series Everflow 12v water pump is self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed. They’re easy to install service with quick 1/2″ screw on fittings

PUMP
Type	4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type	Pressure switch & By pass control
Max Recommended Temperature	60° C（140° F）
Priming Capabilities	6 feet (1.8 m) suction lift
Re-start Pressure	Shut-off Pressure 55PSI : 41 PSI ±5 PSI (±0.3.8 bar)
Inlet/Outlet Ports	1/2″-14 MNPT
Weight	4.0 lbs (1.9 kg)

MOTOR
Leads	16 AWG, 9.4″ (24cm) long with 2-Pin connector/Leads
Duty Cycle	Intermittent
Max.Amp Draw	7.5 A
Fuse	10.0 A

STANDARD PUMP CONFIGURATIONS

Model	Voltage	Open Flow （LPM)	Control Type	Max Draw	Shut-off Pressure (PSI/BAR)	Valves	Diaphragm	Ports	Wire Connections
NMDP42-G30-55-12	12V	11.3	switch & By pass	7.3 A	55 / 3.8	EPDM	Santoprene	1/2″-14 MNPT	2-Pin/Leads
NMDP42-G30-55-24	24V	11.3	switch & By pass	4.2 A	55 / 3.8	EPDM	Santoprene	1/2″-14 MNPT	2-Pin/Leads
