Everboil BC2.2 Boiling Chilled Water Tap

Everboil BC2.2 Boiling Chilled Water Tap

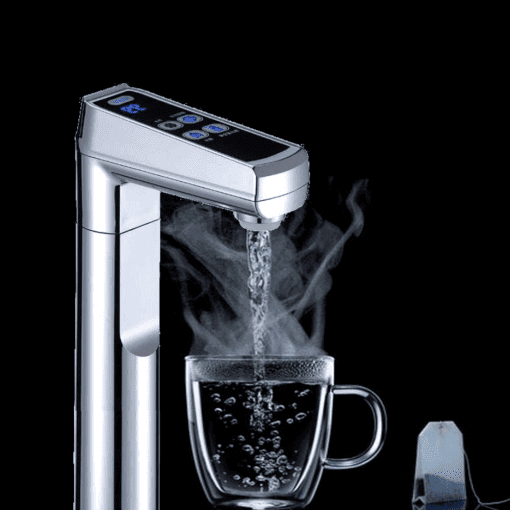

Instant boiling and chilled water tap

Common used PDF’s etc/PDFs/Boiling-hot-water-tank-installation.pdf

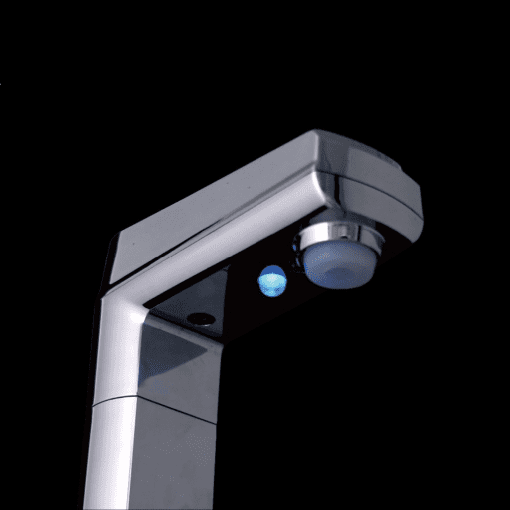

* Push button Boiling and Chiller water tap
* Safety switch on boiling water

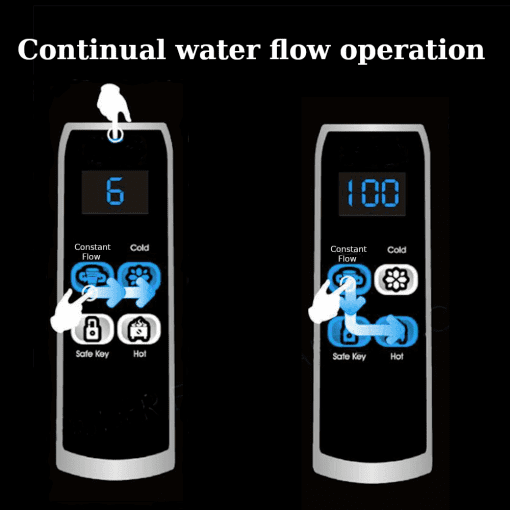

* Continuous flow output button
* Modern look

Hot Water Boiler Product Details:

* LED temperature outlet indicator ( Red boiling / Blue cold )
* Energy-efficient: environmental friendly & energy efficient design.
* Construction: Steel construction with beautify plastic face panel.
* Retains heat: Tank has full layer of thermal insulation .
* Boiler dry protection: Auxiliary over temperature cutout switch.
* Hygienic: Large 4 liter stainless steel tank supplies about 60 cups per hour capacity.
* Sensitive temperature control: Reboils after first cup of water is poured
* Heating Indication: Power on and heating up indicator leds
* Reliable: No complicated pumps and motors to fail

WESTERN AUSTRALIA CUSTOMERS PLEASE READ

Polyphosphate Water Filter will be included in all boiling hot water orders from WA. This filter is essential for hard water in Western Australia, ensuring appliances perform optimally and last longer.

10″ x 2.5″ InLine Water Filter GAC + Polyphosphate

Hot Water Sp ecifications:

* Fast heating time
* Hot Water Tank: 4L
* Watt: 1200W / 240V
* Safety design Panasonic ELCB circuit breaker
* Dimension: W 24x D 18x H 39cm
* Weight 4.4 KG
* 8L/hr  capacity ( 60 x 200ml cups hr )
* Stainless steel 316 water tank
* Double protection with two thermostats
* Woko Japanese backup thermostat
* 2 year warranty on parts and 3 years on tank
* Mains pressure must not exceed 550KPA

Tap Measurements:

* Total height 243mm
* Spout height from base 191mm
* Total width 131mm
* Tap width 52mm
* Hole 35mm

Water Chiller Specifications:

Print When customer installs themselves.

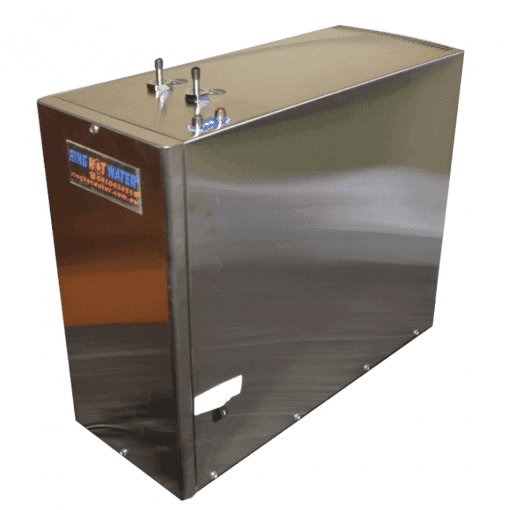

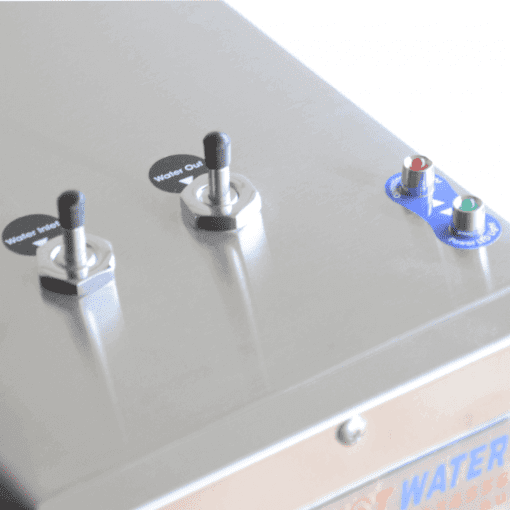

Common used PDF’s etc/Docs/Boiler Diagrams/Drawings/04Boiling & Chiller flow diagramBC2.2.pdfThe drinking water chiller is designed to be installed under the sink to supply chilled refreshing water.

Our drinking water chiller can be installed under a sink or bench, in the ceiling, on a column, an adjacent wall, or in a service area. In fact it’s perfect for virtually any single remote outlet at home or in the office and with the addition of optional filtration, it delivers fresh clean chilled water.

FEATURES & BENEFITS

• Lead and copper free waterways
• 2.2 litre stainless steel chilling tankPrint When customer installs themselves.
Common used PDF’s etc/Docs/Boiler Diagrams/Drawings/04Boiling & Chiller flow diagramBC2.2.pdf
• 9 Litres/hour cooling capacity
• Stainless steel tank
• Blue power coated corrosion resistant cabinet
• 10 cup initial draw-off volume
• Adjustable cooling thermostat
• Easy to install

Dimension: W 18.5x D 44x H 39cm

Water Filter Product Details:

• Medical Grade High-End Technology, Anti-germs cloth is composed of Nano- Silver, Nano-Copper, Titanium Alloy Film
and KX Matrikx NSF high quality CTO carbon block filter.
• 99.9% reduction of bacteria such as coliform, escherichia coli
• 99.9% Efficiently Remove Heavy Metal such as Lead (Pb), Chromium (Cr), Cadmium (Cd)…etc*
• Premium high capacity bad taste & odour and chlorine taste & odour reduction*
• Enhanced dirt holding capacity*
• The Filter is tested by INTERTEK / SGS / private biotechnology laboratory.

After chanEverboil BC2.2 boiling chilled water tapge over kit installed replacement filter is $60.00

Parts IncludedPrint When customer installs themselves.
Common used PDF’s etc/Docs/Boiler Diagrams/Drawings/04Boiling & Chiller flow diagramBC2.2.pdf

• 4 lt Boiling Water Tank
• 2.2 lt Chilled Water Tank

• Boiling / Chilled Water Tap
• Pressure Limiting Valve PLV 350kpa ( protects system )

• 4500lt capicity quick change Nano-Silver ACT filter

• Main Water Connector 1/2″M x 1/2″F x 1/4″F Port

Hole Size needed for tap : 35mm
